Heidelberg Wallbox Home Eco charging station, type 2 cable
PV charging
Load management
Currently not available
Primeo Energie covers the climate protection contribution for this article (CHF 9.35). Learn more
Charging power: 11 kW; 16 A
Suitable for garages, carports and outdoor areas
Intuitive plug-and-play solution
Residual current detection: DC protecti
Show more
Shopping with climate protection contribution
Quick delivery
30 days return policy
Product information

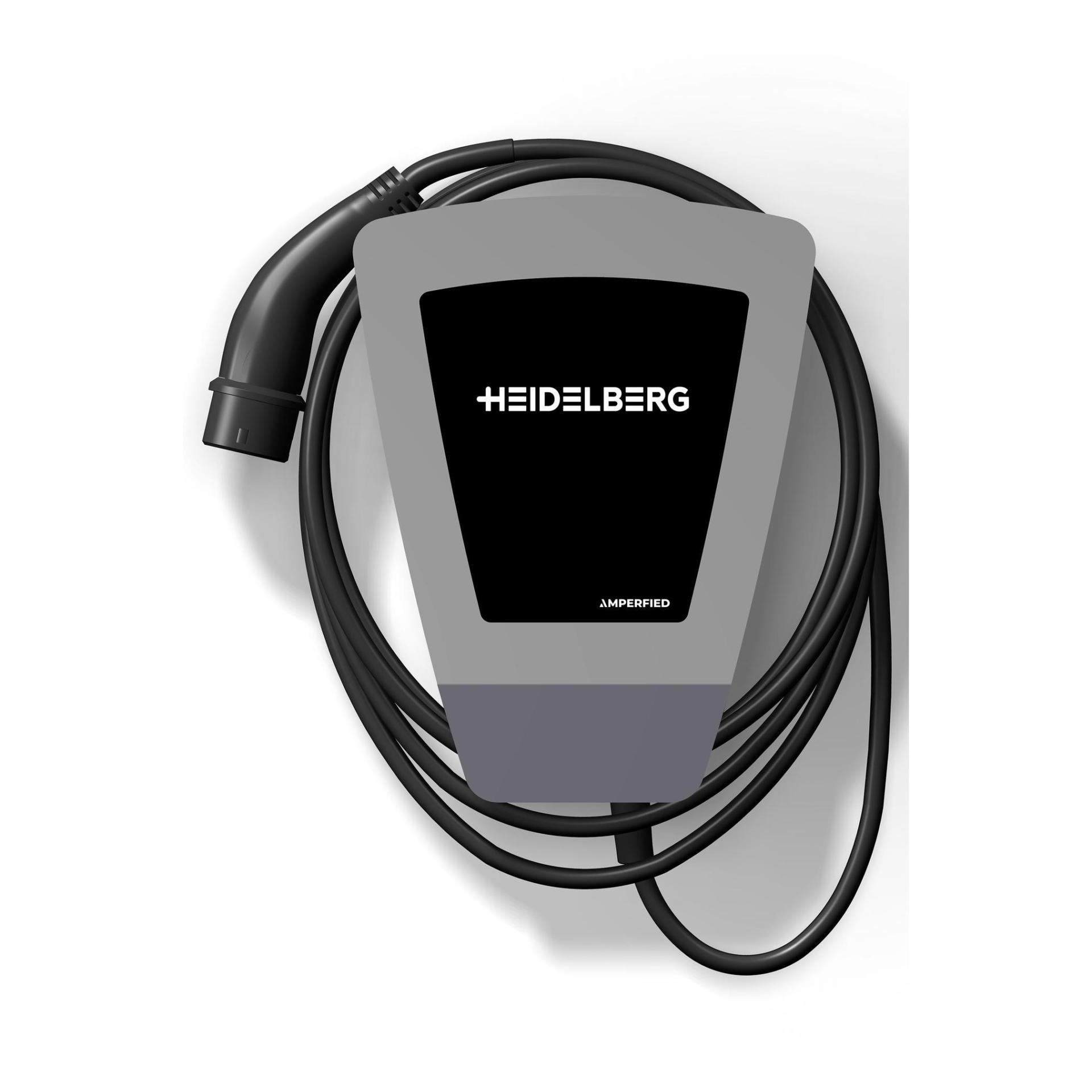

Wallbox Home Eco charging station, type 2 cable
- Charging power: 11 kW; 16 A
- Suitable for garages, carports and outdoor areas
- Intuitive plug-and-play solution
- Residual current detection: DC protection 6 mA
- Protection class: IP54 (splash-proof)
- 5 m long charging cable with type 2 plug
Heidelberg Wallbox Home Eco - 11 kW charging station for the home
The Heidelberg Wallbox Home Eco is a compact, reliable and robust charging station for private use. It offers up to 11 kW charging power (3-phase, 16 A) and is suitable for all standard electric vehicles. The wallbox is designed for indoor and outdoor use (protection class IP54, impact resistance IK08).
Both versions have integrated RFID access for user authorization. Optionally, PV charging and load management can be implemented via the **ABL eMS home** solution (not included in the scope of delivery).

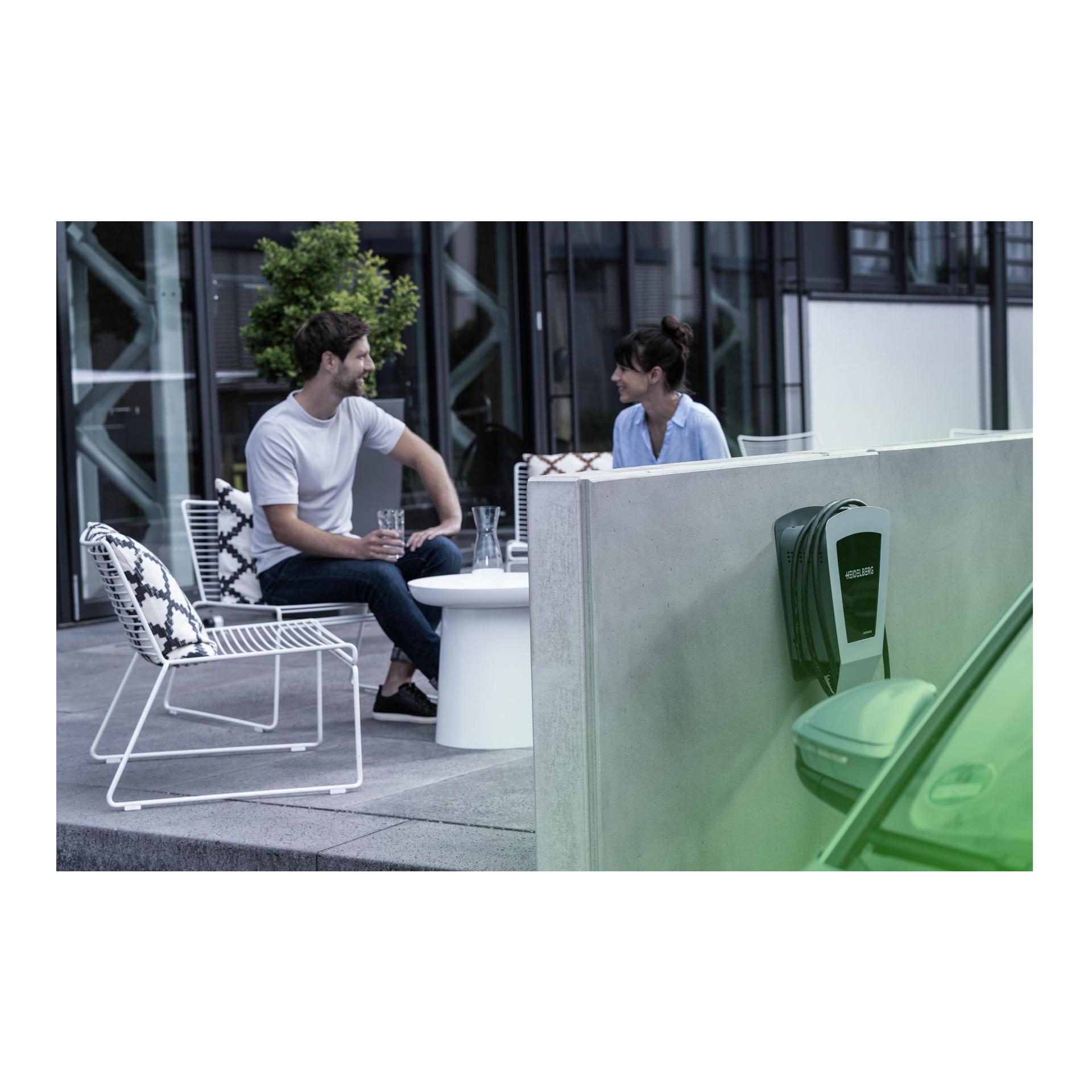

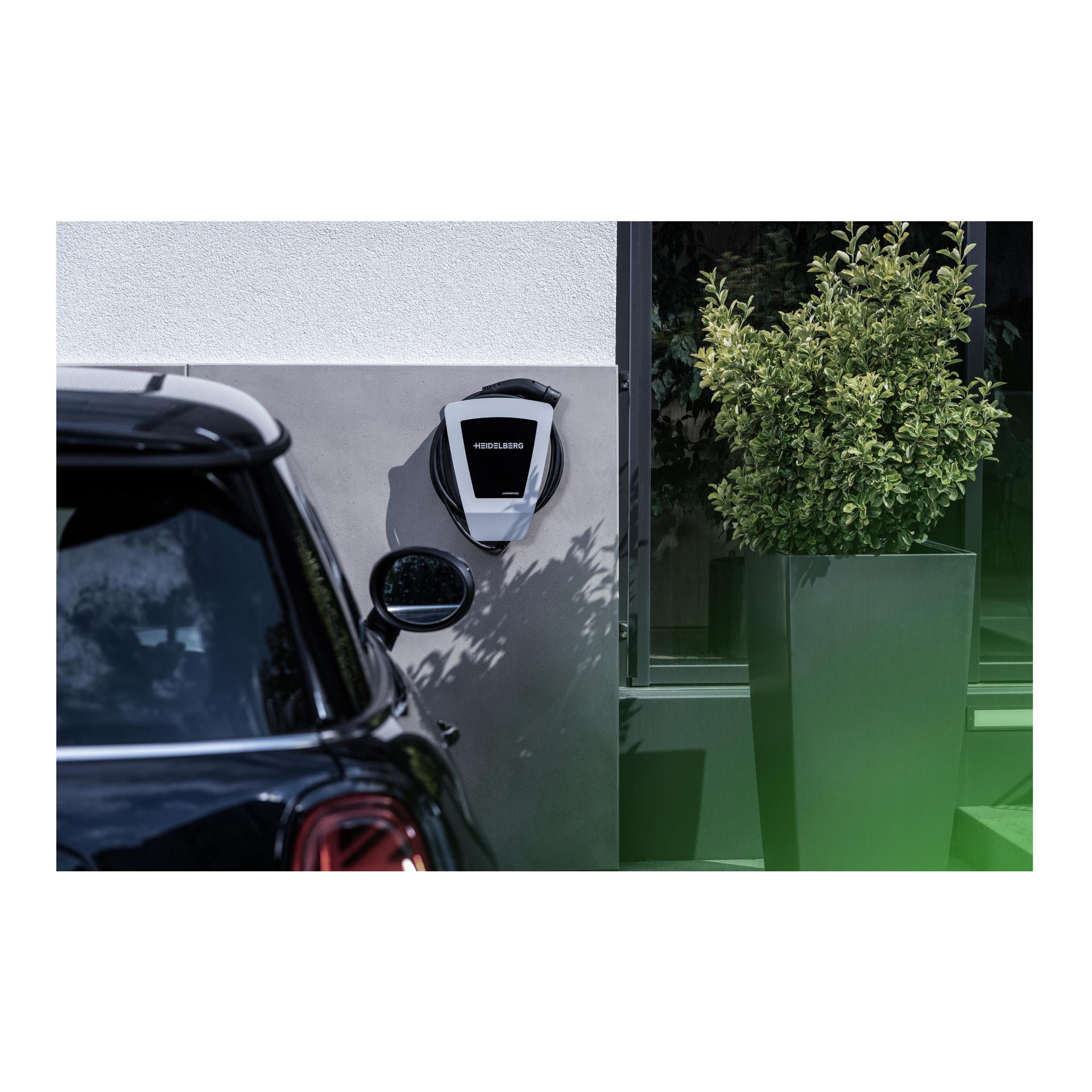

Ready for use anywhere - the permanently installed wallbox
As a stationary charging device, the Heidelberg Wallbox Home Eco is permanently installed on the wall. It can be used in garages as well as in carports and outdoors. Thanks to its protection class and its solid, durable metal housing, the Wallbox is always in the right place, even outdoors. The Heidelberg Wallbox Home Eco impresses with its intuitive operation, exceptional design and compact dimensions. Installation costs are reduced to a minimum thanks to the integrated DC fault current detection.
Heidelberg - charging technology made in Germany
The name Heidelberg stands for state-of-the-art solutions in the print media industry. A decisive success factor here is electronics. This long-standing expertise is also implemented in intelligent applications, such as reliable and durable charging systems for e-mobility.
Highlights:
- Up to 11 kW charging power - reliable charging at home
- Integrated RFID access - secure user authorization
- Robust construction: IP54 & IK08 - for indoor and outdoor use
- Optional PV charging & load management with ABL eMS home
- Compact dimensions - easy wall mounting
Technical data:
| Feature | Value | Accessories required? |
|---|---|---|
| Charging power (nominal) | 11 kW (3-phase, 16 A) | - |
| Voltage | AC 400 V / 230 V | - |
| frequency | 50 Hz | - |
| Mains types | TT, TN | - |
| Cable length | 5 m (variant 1364512) / 7.5 m (variant 1364513) | - |
| PV charging (solar surplus charging) | Yes | Yes (with ABL eMS home) |
| Load management | Yes | Yes (with ABL eMS home) |
| WLAN connectivity | No | - |
| LAN connectivity | No | - |
| 4G connectivity | No | - |
| RFID access | Yes | - |
| Protection class | IP54 | - |
| Impact resistance | IK08 | - |
| Operating temperature | -30 °C ... +50 °C | - |
| Dimensions (H × W × D) | 320 mm × 195 mm × 110 mm | - |
| weight | approx. 3.5 kg | - |
| Communication / protocols | RS485 / Modbus | - |
Note for customers: PV charging and load management require the additional installation of ABL eMS home, which is **not included in the scope of delivery**.
Scope of delivery:
1x Heidelberg Wallbox Home Eco charging station, type 2 cable (grey)
