Juice Technology Mobile Ladestation JUICE BOOSTER 3 air CH Traveller Plus Set
Load management
WLAN
Stock: 5
Available, delivery time: 1-3 workdays
Primeo Energie covers the climate protection contribution for this article (CHF 27.95). Learn more
Activation via RFID card and fully automatic adapter recognition
Integrated dynamic load management for up to ten devices
Monitoring, remote and time-controlled c
Show more
Shopping with climate protection contribution
Quick delivery
30 days return policy
Product information

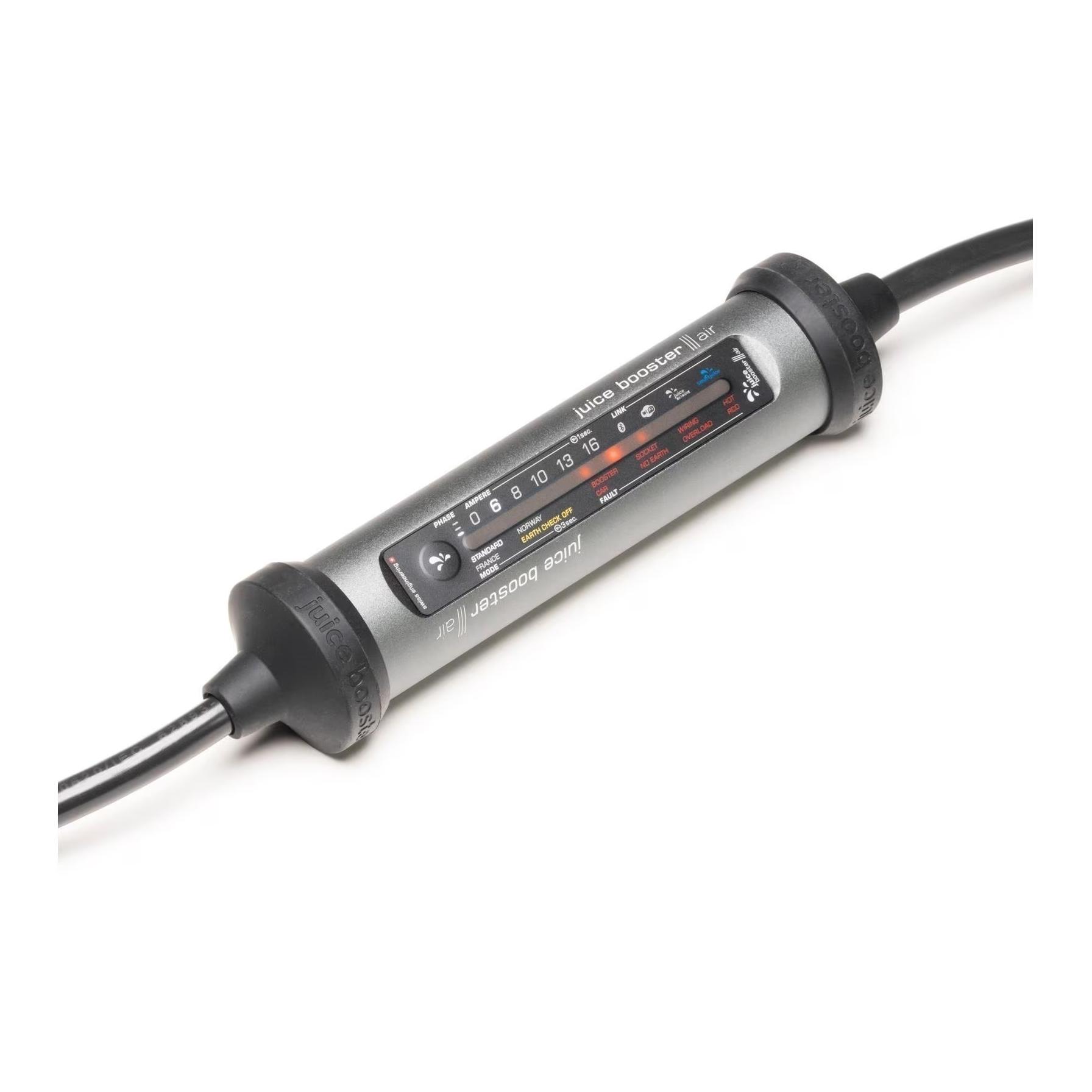

Mobile Ladestation JUICE BOOSTER 3 air CH Traveller Plus Set

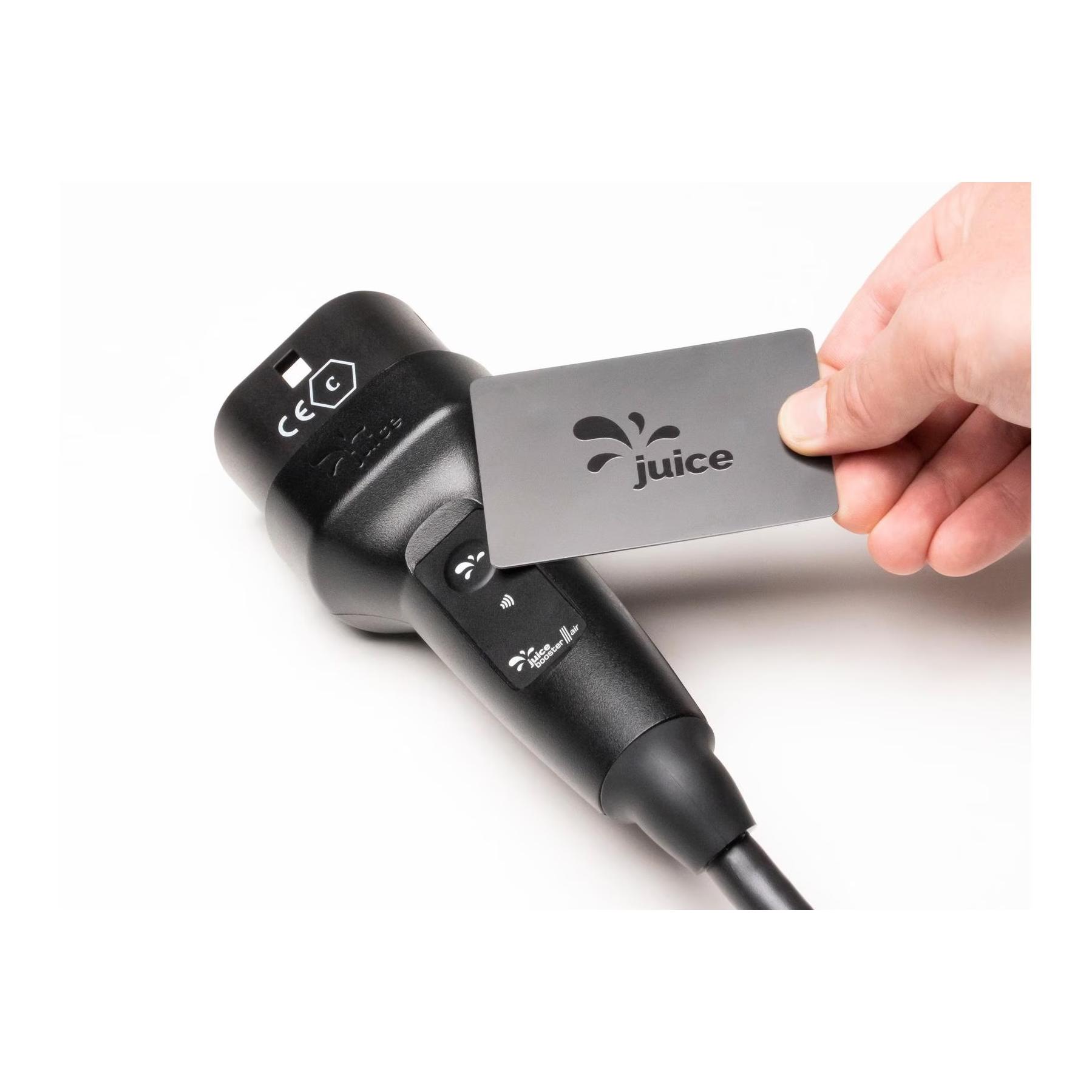

- Activation via RFID card and fully automatic adapter recognition
- Integrated dynamic load management for up to ten devices
- Monitoring, remote and time-controlled charging with the "j+ pilot" app
- Integrated RCD protection against DC and AC residual currents, detailed fault detection, including detection of incorrectly wired sockets and excessive current consumption
- Very robust design: Drive-over proof, dust & waterproof and temperature resistant
- Set incl. 5 adapters: CEE32 400 V, CEE16 400 V, CEE16 230 V, T13 230 V, type 2 230 V (over 30 adapters available in total)
The JUICE BOOSTER 3 air Traveler Plus Set is a compact, mobile charging station from Juice Technology with up to 11 kW charging power (single-phase to three-phase). It offers flexible application options for at home, on the road or at public charging stations and can be controlled via the "j+ pilot" app.
Highlights:
- Mobile use or wall mounting with bracket
- One cable for public charging stations thanks to type 2 adapter
- Load management controlled via app
- Robust, waterproof, drive-over safe up to 3 tons
- RFID activation including 2 cards
- Integrated residual current protection, type B RCD not required
- Cable length 5 m, optionally extendable
- WLAN & Bluetooth for app control
Technical data:
| Feature | Value |
|---|---|
| Charging power | 1.4-11 kW (single-phase to three-phase, 6-16 A) |
| Mains voltage | 230 V (1-phase) / 400 V (3-phase) |
| PV charging (solar surplus) | No |
| Load management | Yes, controllable via app |
| WLAN | Yes |
| LAN | No |
| 4G / LTE | No |
| Cable length | 5 m, optionally extendable |
| RFID activation | Yes, including 2 cards |
| Residual current protection | Integrated, RCD type B not required |
| Dimensions | Ø 53 mm, length 213 mm |
| Weight | approx. 700 g without cable, approx. 1.8 kg with cable |
| material | Anodized aluminium |
Scope of delivery :
- 1x JUICE BOOSTER 3 air mobile charging station
- 1x JUICE CONNECTOR adapter CEE32 400 V
- 1x JUICE CONNECTOR adapter CEE16 400 V
- 1x JUICE CONNECTOR adapter CEE16 230 V
- 1x JUICE CONNECTOR adapter T13 230 V (CH)
- 1x JUICE CONNECTOR adapter type 2 400 V
- 1x JUICE BOOSTER 3 air bag
- 2x preconfigured RFID cards
Downloads
