Danfoss Ally™ Electronic radiator thermostat, set of 5
Expected delivery: 11.11.2025
Primeo Energie covers the climate protection contribution for this article (CHF 7.5). Learn more
Set at a special price
Precise temperature control from 5-35°C
Zigbee 3.0 wireless standard for smart home compatibility
Show more
Shopping with climate protection contribution
Quick delivery
30 days return policy
Product information
Electronic radiator thermostat, set of 5
- Set at a special price
- Precise temperature control from 5-35°C
- Zigbee 3.0 wireless standard for smart home compatibility

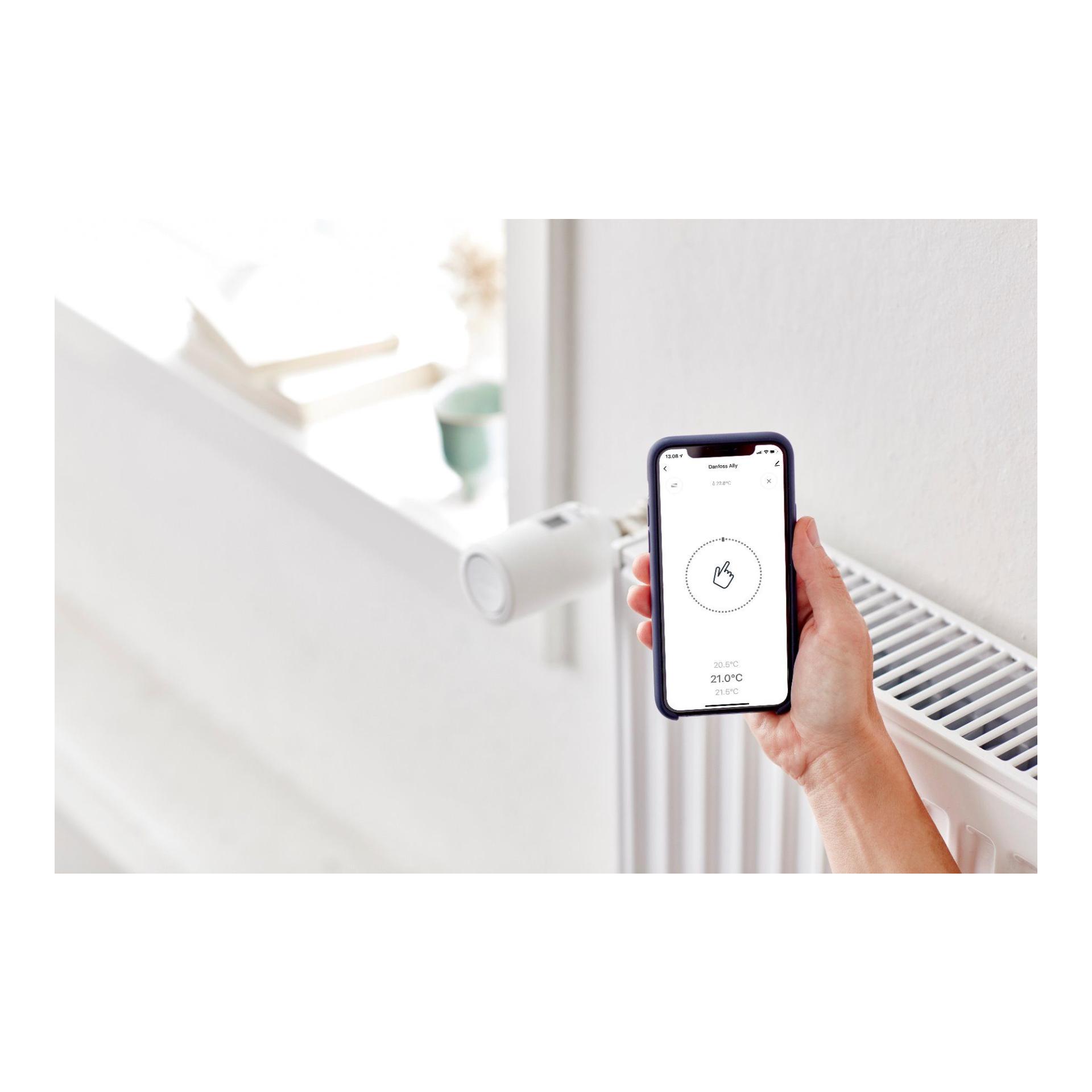

- Control manually, via app or voice control (e.g. Alexa)
- Compatible with RAV, RA, RAVL and M30x1.5 valves
- Tool-free installation - quick and easy to fit
- LCD display with backlighting
- Integrated frost protection function
- Compatible with Danfoss Ally™ app and other Zigbee smart home systems

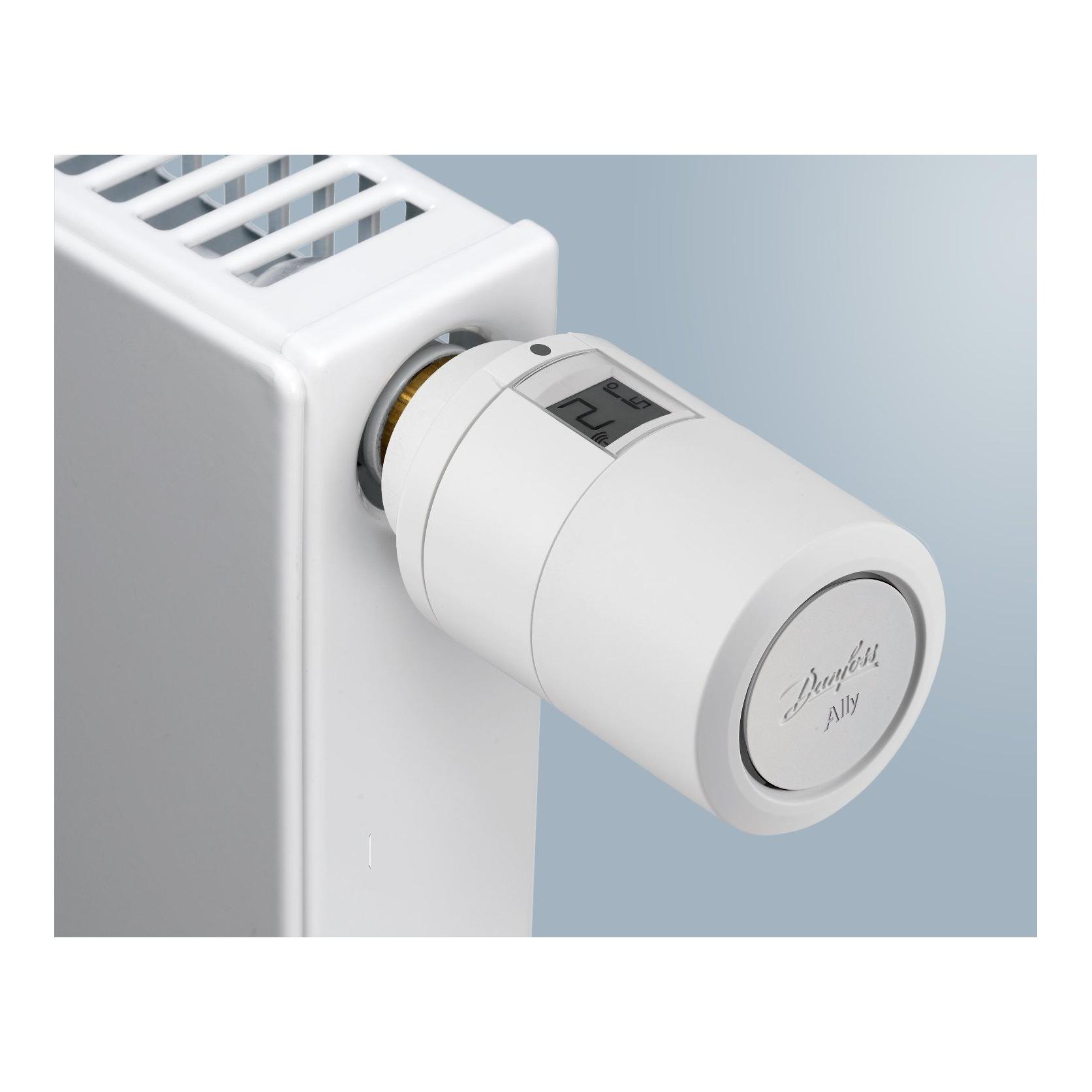

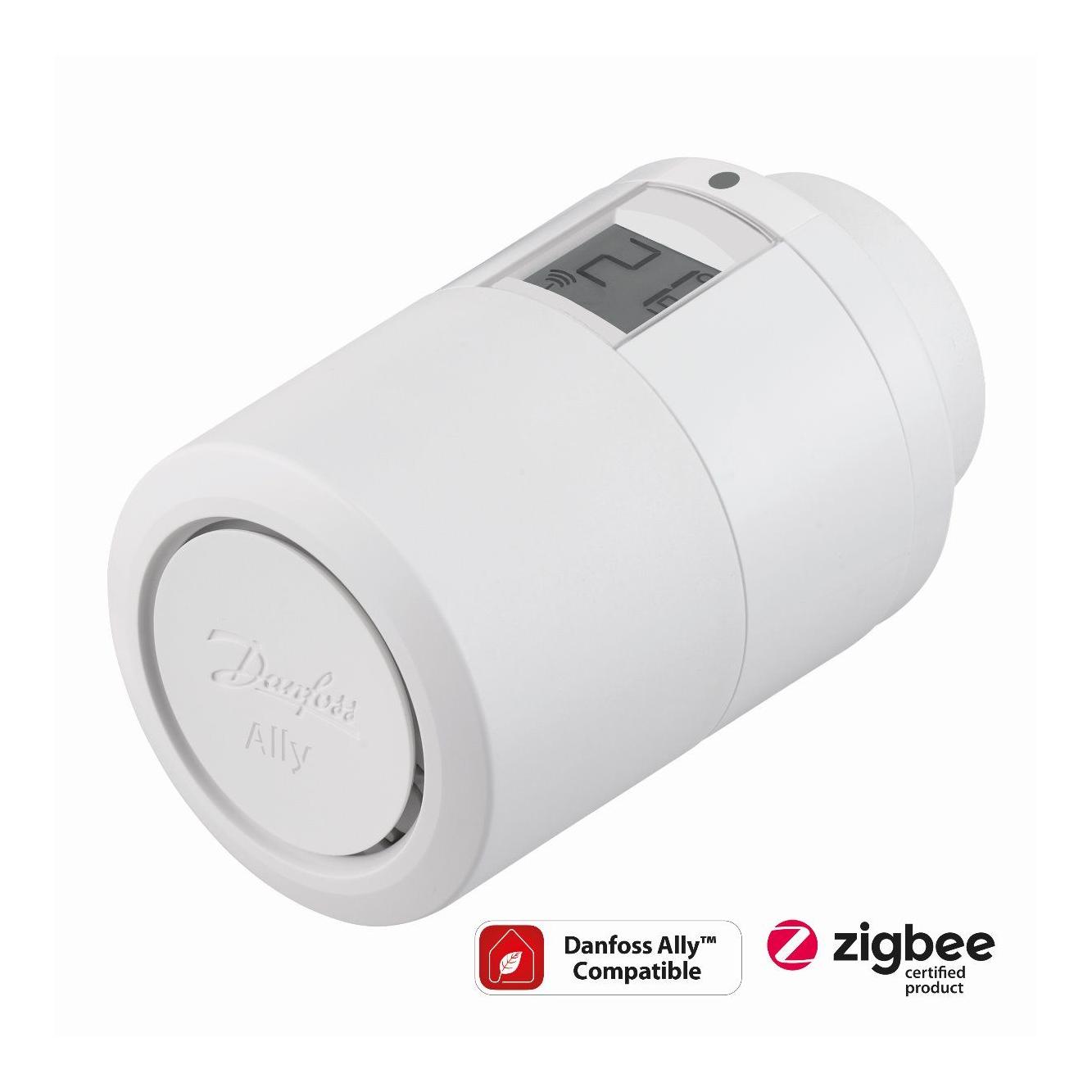

The Ally radiator thermostat is a networked radiator thermostat for use in living rooms. The Danfoss Ally radiator thermostat is battery-operated, compact and easy to operate with a hand wheel and a single button. The Danfoss Ally radiator thermostat is a Zigbee 3.0 certified product that is compatible with the Danfoss Ally Gateway and third-party certified systems with Zigbee technology.
Specifications :
- Energy saving
- Easy to install
- Easy to operate
- Manual operation possible
- Window open detection
- Child safety lock
- Illuminated display
- Min. Temperature setting
- Battery life >2 years
- Valve anti-blocking function
- PID room temperature control
- Many different mounting adapters
- Adaptive learning (forecast)
- Frost protection
- OTA wireless firmware update
- Battery status display on thermostat and in the Danfoss app
- Zigbee 3.0 Programmable electronic radiator thermostat
- Transmission frequency Danfoss Ally e-Thermostat Zigbee/IEEE 802.15
- Electromechanical actuator
- LCD display, white backlight
- PID temperature control
| Feature | Details (manufacturer's specifications) |
|---|---|
| Adapter compatibility | RAV, RA, RAVL, M30x1.5 |
| Temperature range | 5 °C to 35 °C |
| Measuring accuracy | ±0.5 °C per month |
| Spindle movement | Linear, up to 4.5 mm, max. 2 mm at the valve |
| Operating mode | Manual, app-controlled, voice control (e.g. Alexa) |
| Radio standard | Zigbee 3.0 (2.4 GHz) |
| IP protection class | IP20 |
| Power supply | 2 × 1.5 V AA batteries |
| Battery life | > 2 years |
| Power consumption | 1,2 W |
| Display | LCD with backlight |
| Dimensions (W × H) | 55 mm × 85 mm |
| Weight (W × H) | 0.2 kg |
| Noise level | < 30 dBA |
| Max. Ambient temperature | 40 °C |
| Frost protection function | Yes |
| Compatibility | Danfoss Ally™ app, compatible with Zigbee-enabled smart home systems |
| Installation | Tool-free installation |
Scope of delivery:

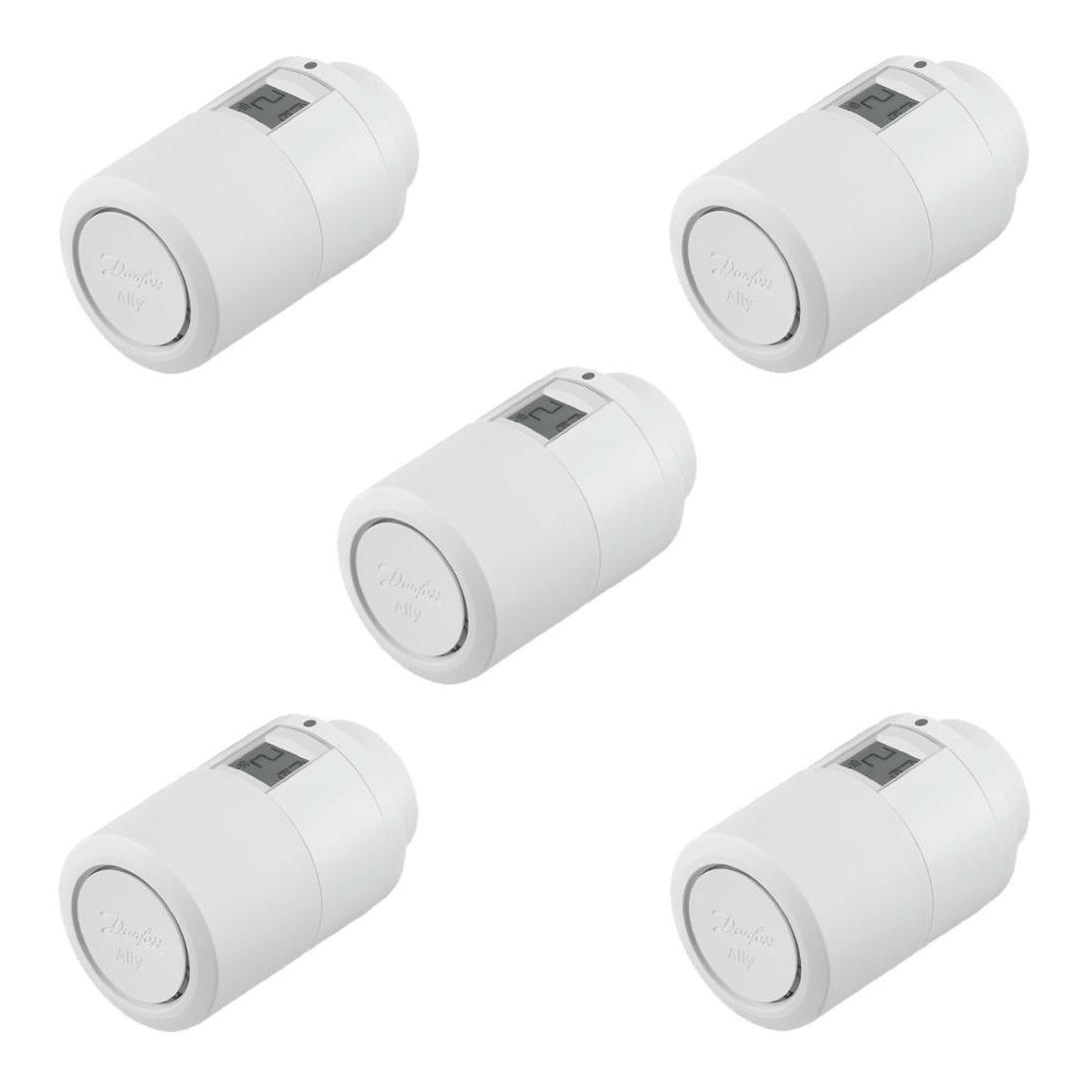

5x Danfoss Ally™ radiator thermostat
